Product Introduction
SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.
Application
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
Product Features
■ Split frame structure, can be quickly install
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
Specification
■ Drive Options: Pneumatic, Hydraulic, and Electric
■ Air requirements: 2-3m³/min
■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)
■ Electric requirements: 220V/AC 50/60Hz
■ Feed mode: Star wheel, automatically
■ Feed rate: Fixed@0.08mm per circle
■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy
Beveling type
Models
| Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
| SFM1420 | 14"~20" | 100 | 76 | Electric Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 |
| SFM2026 | 20"~26" | 100 | 130 |
| SFM2430 | 24"~30" | 100 | 142 |
| SFM2632 | 26"~32" | 100 | 150 |
| SFM3036 | 30"~36" | 100 | 159 |
| SFM3642 | 36"~42" | 100 | 179 |
| SFM4248 | 42"~48" | 100 | 198 |
| SFM4860 | 48"~60" | 100 | 642 |
| SFM6072 | 60"~72" | 100 | 730 |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to the pipe diameter.
Dimension
| The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors |
| Model | A(mm) | B(mm) | C(mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| SFM0206 | 176 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM0408 | 228 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM0612 | 332 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM0814 | 364 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM1016 | 416 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM1218 | 468 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM1420 | 518 | 70 | 122 | 176 | 225 | 253 | 164 |
| SFM1824 | 622 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM2026 | 674 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM2430 | 776 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM2632 | 826 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM3036 | 928 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM3238 | 1006 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM3642 | 1082 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM4248 | 1236 | 102 | 98 | 176 | 235 | 253 | 174 |
| SFM3648 | 1296 | 140 | 220 | 276 | 235 | 253 | 174 |
| SFM4860 | 1600 | 140 | 220 | 276 | 235 | 253 | 174 |
| SFM6072 | 1905 | 140 | 220 | 276 | 235 | 253 | 174 |
| SFM7284 | 2210 | 140 | 220 | 276 | 235 | 253 | 174 |

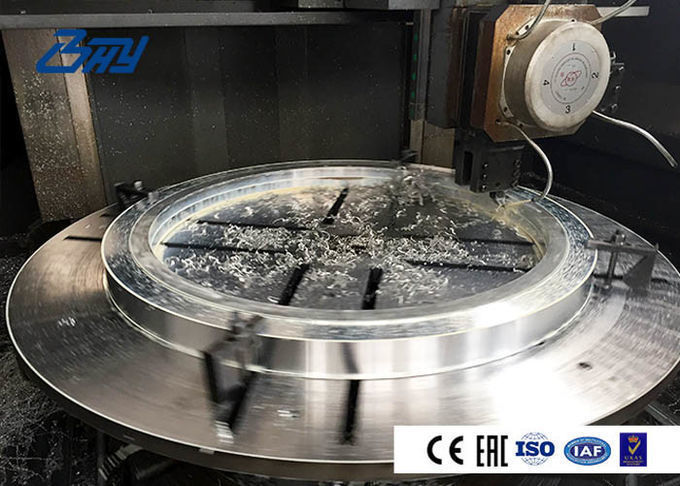

Manufacture

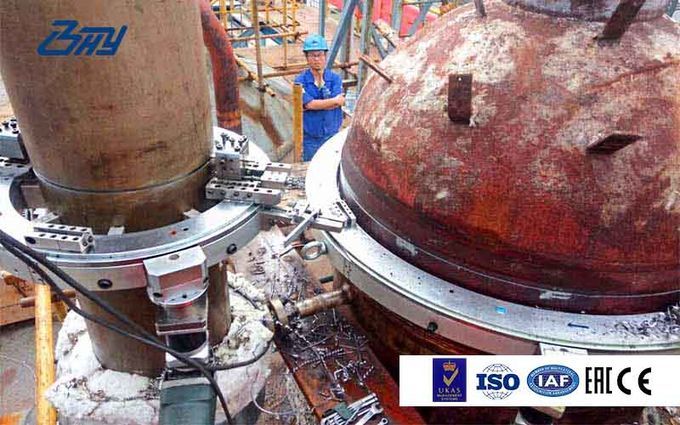

Working On Site
